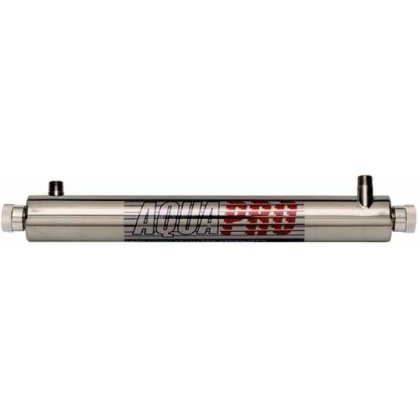

Coldmist UV Water Sterilizer

The AQUA PRO ultraviolet germicidal system incorporates modern technology to create the most natural water purification possible and is a much preferred alternate to the use of chemical s to disinfect impure water.

HOW IT WORKS :

• Ultraviolet lamps produce germicidal short wave radiation, which eradicates
  bacteria, viruses and other kinds of microbiological contamination present in all water supplies.
• ­ Ultraviolet water sterilizers incorporate natural ultraviolet light, which
  allows the highest UV output and automatically eradicates all microorganisms.
• ­ Only UV light is used to treat the water, no dangerous chemicals
• no danger of overdosing
• no bad taste in the water
• no odour or corrosion in the treated water
• continuous disinfection of water - processed water is now ready for use !
• high output and low power consumption - ­ Low power consumption - 20W
• will process up to 22 Lpm of water.
• ­ Easy to install and low maintenance
• Can be installed alone – or - connected with other filtration / RO systems.
• ­Visual indicator and alarm for lamp failure.
• ­30000mic. Watt/sec/cm2 at energy of 253.7nm wavelength.
• ­Automatic controller to shut off water supply when lamp failure occurs (solenoid valve requirement).
• ­Vertical or horizontal installation.
• ­Unique diagonal inlet/outlet provides spiral current to prolong lighting
  duration and enhance sterilising effect.
• ­Effectively protects quartz sleeve from the damage or water hammer
• ­Both ports can be inlet or outlet.
• ­ Heavy duty 304 stainless steel pressure vessel
• ­ Heavy duty UV lamps and quartz sleeves using highest grade “hard glass” pure fused quartz to allow highest output.
• ­ Ceramic end cap of UV lamp
• ­9000 hours (1 year) lamp life
• ­Working Pressure 100 PSI
• ­ 120VAC or 240VAC

BENEFITS:

• Ultraviolet water sterilizers incorporate natural ultraviolet light, which allows the highest UV output and automatically eradicates all microorganisms.
• Only UV light is used to treat the water, no dangerous chemicals
• no danger of overdosing
• no bad taste in the water
• no odour or corrosion in the treated water
• continuous disinfection of water - processed water is now ready for use !
• high output and low power consumption - ­ Low power consumption - 20W
• will process up to 22 Lpm of water.
• Easy to install and low maintenance
• Can be installed alone – or - connected with other filtration / RO systems.

FEATURES:

• ­Visual indicator and alarm for lamp failure.
• ­30000mic. Watt/sec/cm2 at energy of 253.7nm wavelength.
• ­Automatic controller to shut off water supply when lamp failure occurs (solenoid valve requirement).
• ­Vertical or horizontal installation.
• ­Unique diagonal inlet/outlet provides spiral current to prolong lighting
  duration and enhance sterilising effect.
• ­Effectively protects quartz sleeve from the damage or water hammer
• ­Both ports can be inlet or outlet.

MATERIAL:

• Heavy duty 304 stainless steel pressure vessel
• ­ Heavy duty UV lamps and quartz sleeves using highest grade “hard glass” pure fused quartz to allow highest output.
• ­ Ceramic end cap of UV lamp

TECHNICAL DATA:

• ­9000 hours (1 year) lamp life
• ­Working Pressure 100 PSI
• ­ 120VAC or 240VAC

Weight : 420g

NOTE : ALL UV FILTERS MUST BE USED IN CONJUNCTION WITH A 5 MICRON PARTICLE FILTER
